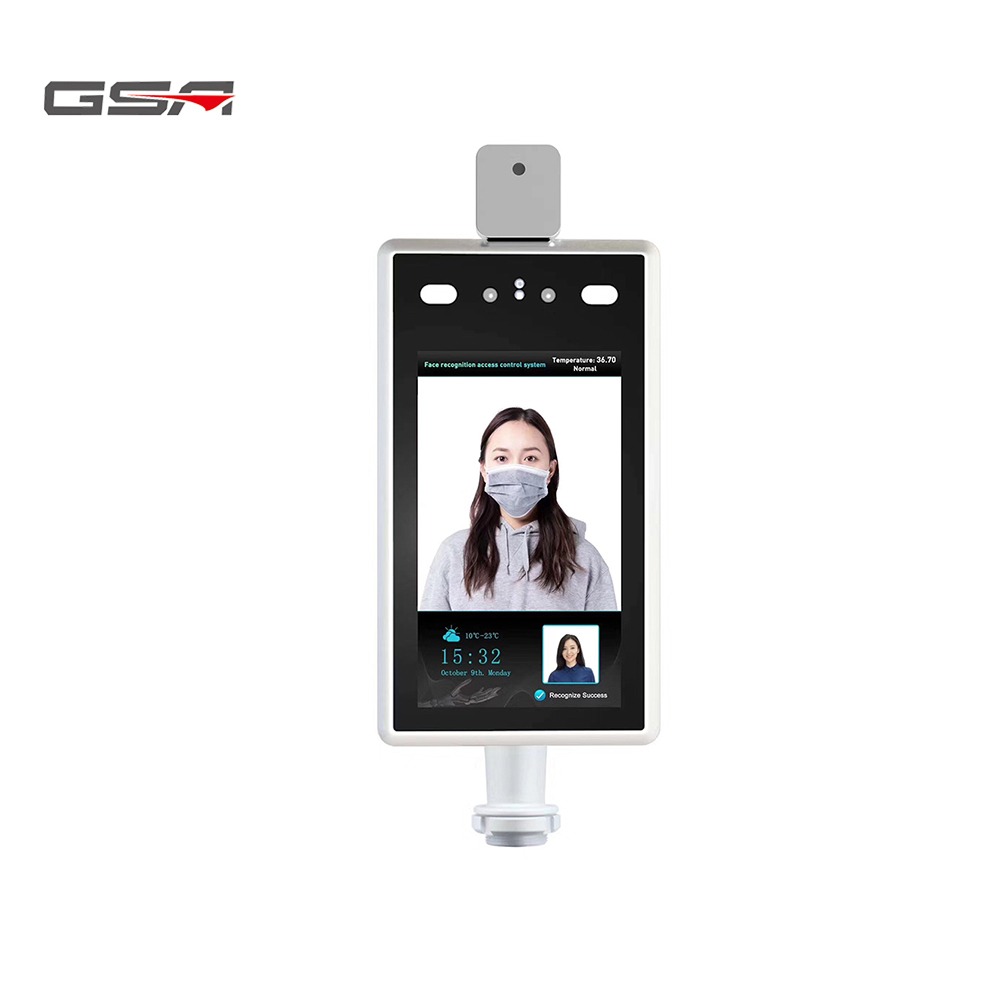

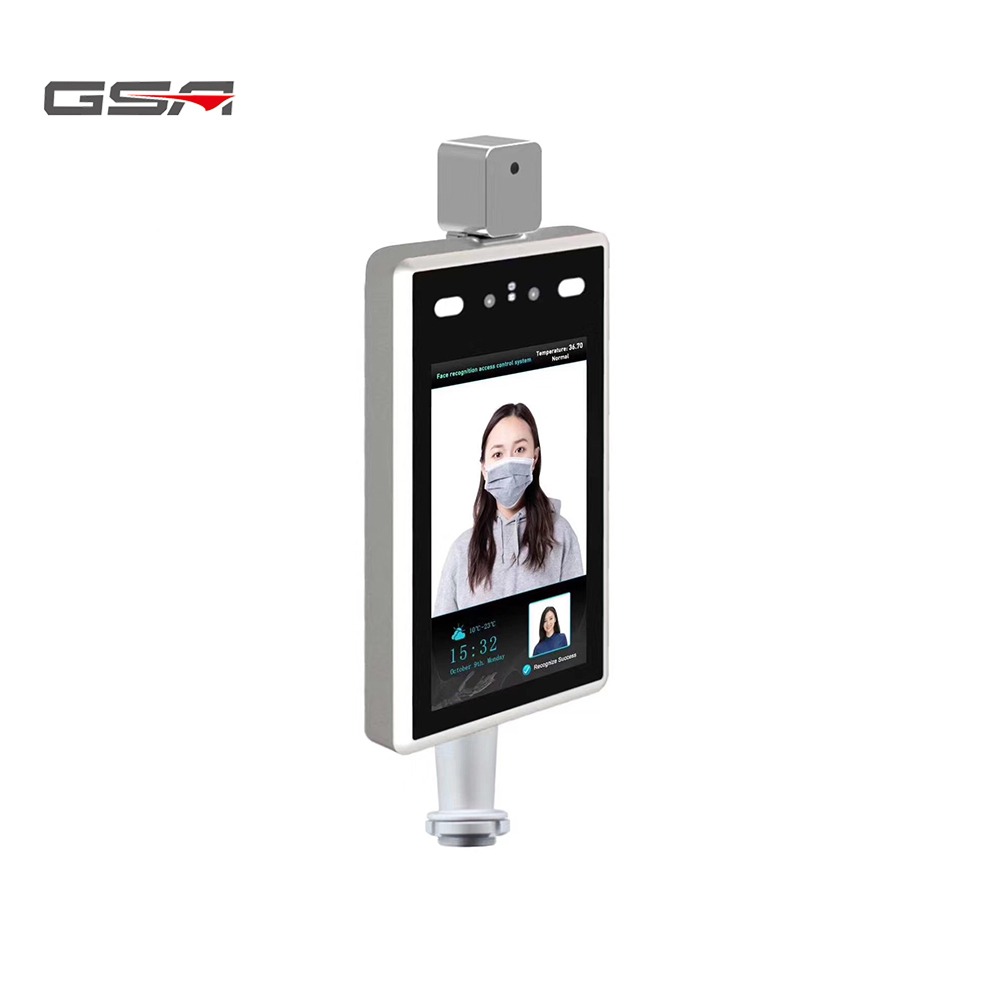

Temperature Measurement and Face Recognize Access Control Panel Camera
1. Hi3516DV300 chipset, temperature detect in seconds, fast and high effect
2. Temperature measurement range 30-45 (℃) Accuracy ± 0.5 (℃)3. Automatically identify unmasked personnel and provide real-time warning4. Support Windows / Android / Linux system.5. Support temperature data SDK and HTTP protocol docking
Product Parameters
|
Hardware
|
|||
|
Chipset
|
Hi3516DV300
|
||
|
System
|
Linux operation system
|
||
|
RAM
|
16G EMMC
|
||
|
Image sensor
|
1/2.7″ CMOS
|
||
|
Lens
|
4mm
|
||
|
Camera Parameters
|
|||
|
Effective pixel
|
2Mega pixel,1920*1080
|
||
|
Min. lux
|
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2
|
||
|
SNR
|
≥50db(AGC OFF)
|
||
|
WDR
|
≥80db
|
||
|
Face Recognition
|
|||
|
Height
|
1.2-2.2 M, angle adjustable
|
||
|
Distance
|
0.5-3 Meters
|
||
|
View angle
|
Vertical ±30 degree
|
||
|
Reco. Time
|
<500ms
|
||
|
Function
|
Support 22400 faces database and 100000 records
|
||
|
Temperature
|
|||
|
Range
|
30-45(℃)
|
||
|
Accuracy
|
±0.3(℃)
|
||
|
Distance
|
≤0.5 Meter
|
||
|
Response time
|
<300ms
|
||
|
Interface
|
|||
|
Internet interface
|
RJ45 10M/100M Ethernet
|
||
|
Weigand port
|
Support input/output 26 and 34
|
||
|
Alarm output
|
1channel relay output
|
||
|
USB port
|
1USB port (Can be connected to ID identifier)
|
||
|
General
|
|||
|
Power input
|
DC 12V/3A
|
||
|
Power consumption
|
20W(MAX)
|
||
|
Working temperature
|
0℃~ +50℃
|
||
|
Humidity
|
5~90%, no condense
|
||
|
Dimension
|
154(W) * 89(H) *361.4(L)mm
|
||
|
Weight
|
2.1 kg
|
||
