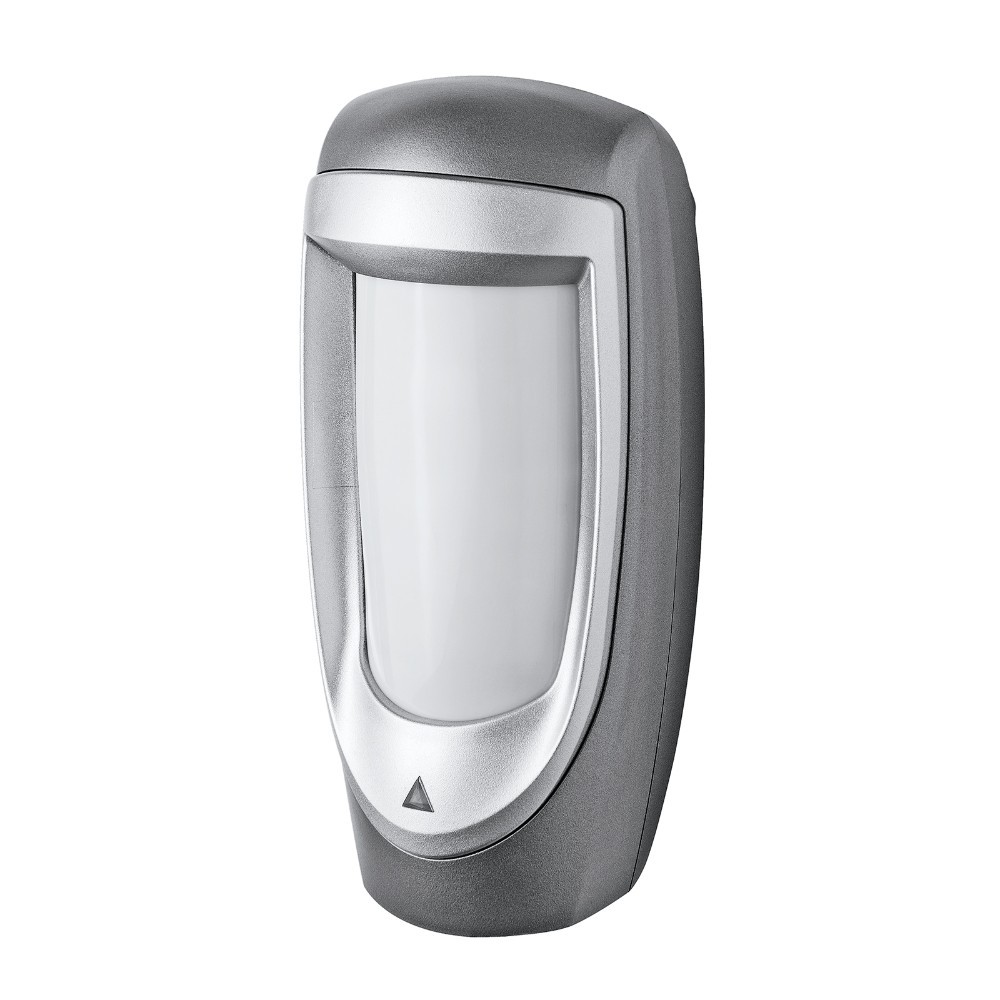

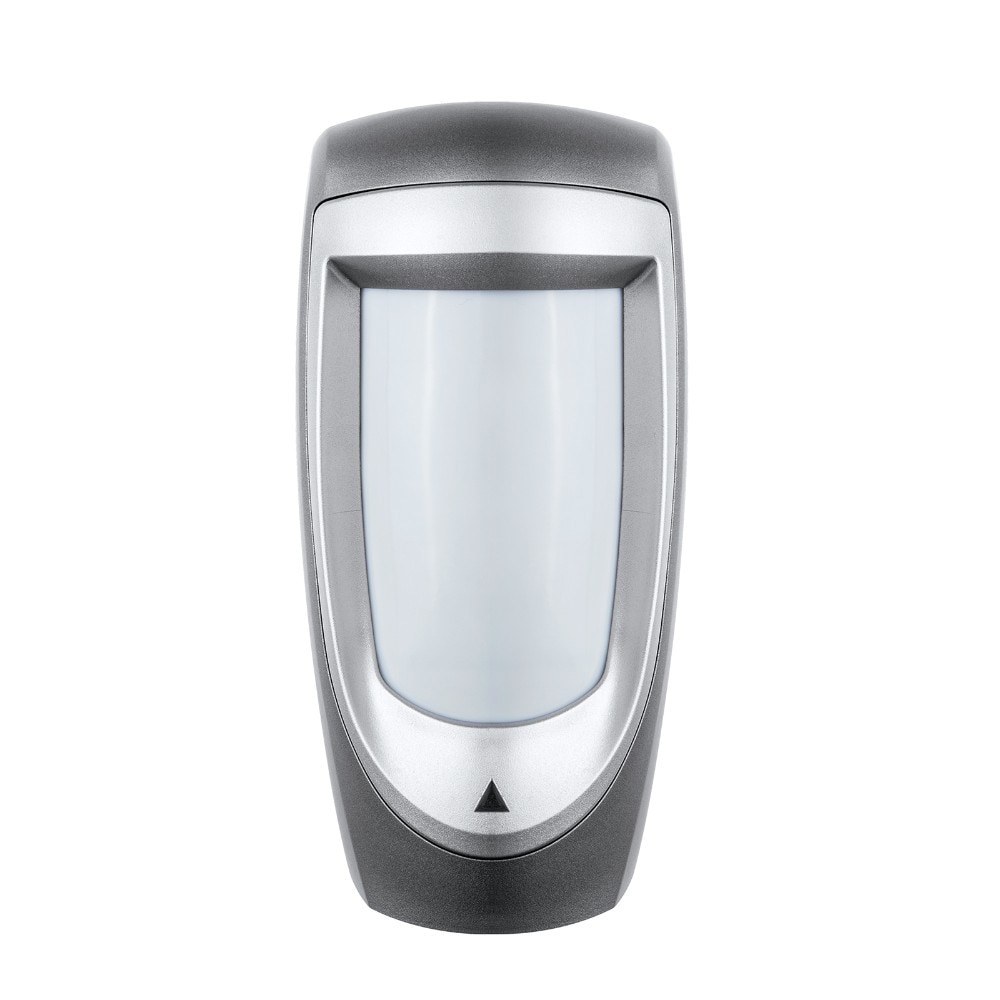

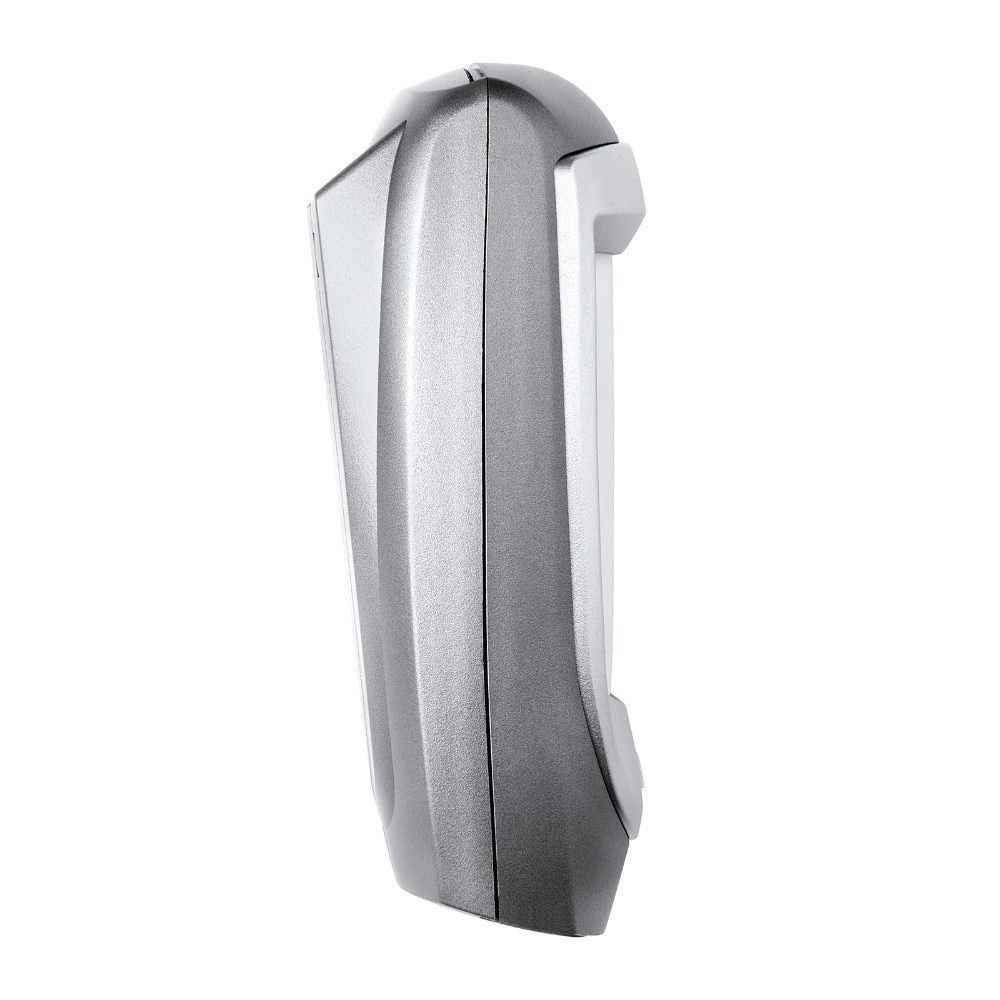

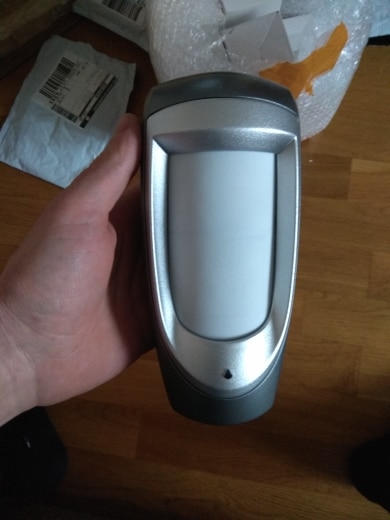

Wireless DG-85 Intelligent 2 Dual Wired Outdoor Pir Intrusion Detector Anti-Pet For Home Alarm System 433mhz Outdoor Motion Sensor
this sensor can’t be used independently. It needs to work with the panel which is the same as this sensor’s parametter.And it is not universal for all the panel. Plz contact with us firstly before you order if you don’t know clearly. We don’t take any responsible because of your false order. Thanks!
It is a kind of PIR intrusion detector integrating the most advanced security technology. It adopts 2 dual PIR sensors with high accuracy, intelligent digital chip, advanced ,of two are technology, which can help it to make an accurate judgment of true intruder or other interference that can cause wrong alarm. And it is with function of automatic memory of environmental change, which can avoid wrong alarm a used by hot & cold air, operation machine interference. It can prevent effectively the interference cause by a 25 kg past or 10 cats, insect, mouse, birds etc. Its super filter can used indoor and outdoor. This has clear various interference that common PIR detector can’t overcome; and put an end to wrong alarm and miss alarm .It has two different working modes: bus mode and relay mode, can be used for all kinds of control panels on the market.

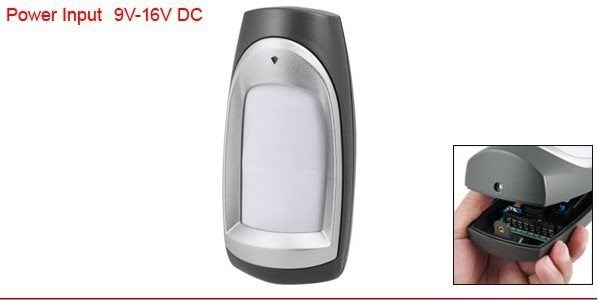

■ Voltage input: DC 10-16V

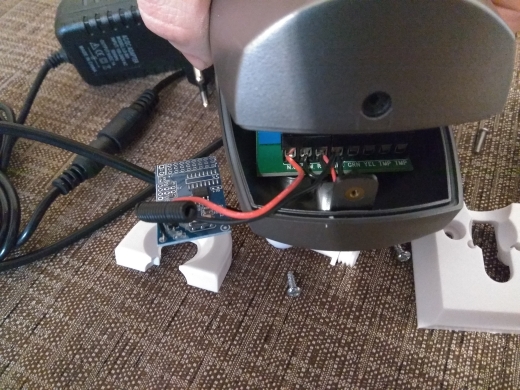

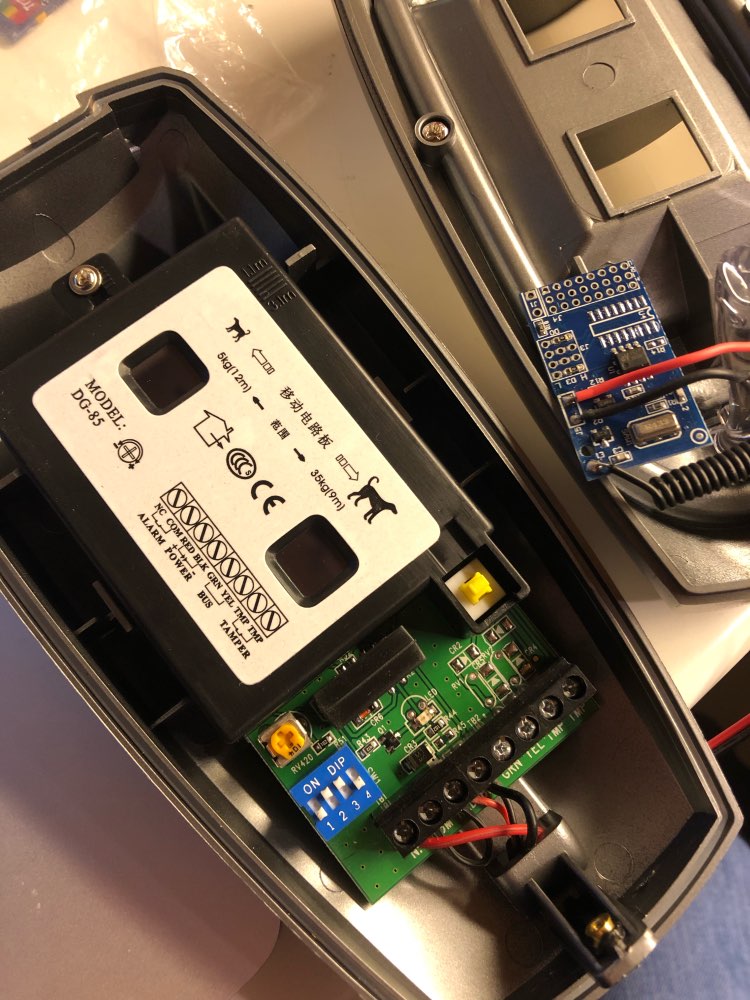

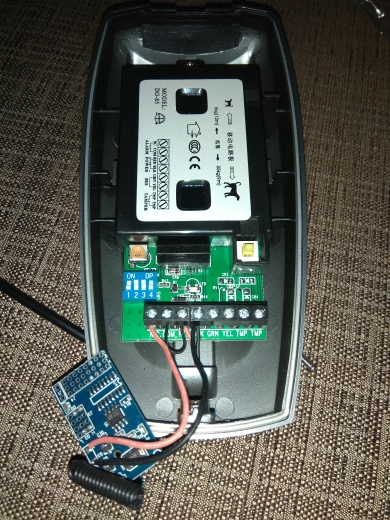

■ can be converted into wireless (the original is a wired infrared)
■ Sensor type: two independent binary infrared
■ Inductive Geometry Beam: Rectangle
■ Detection range: 1.5m-11m (horizontal 90 °, vertical 90 °, installation height: 2.1-2.7M)
■ Operating temperature: -20 ℃ ~ +50 ℃
■ Current consumption: up to 30mA
■ Alarm output: relay (100mA / DC 28V), NC
■ tamper alarm output: 150mA / DC 28V, NC
■ Anti-RFI / EMI: 10V / m
■ Detection speed: 0.2m / s to 3.5m / s

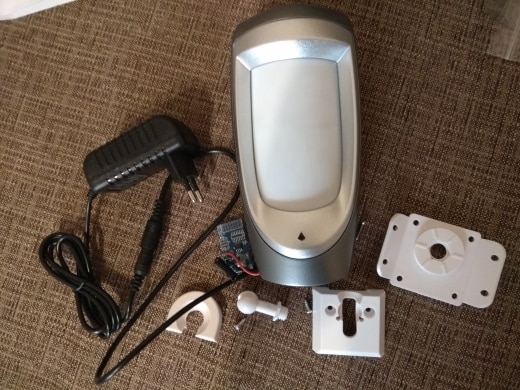

1 x Intelligent Pet friendly PIR motion sensor （power adapter not include）
