Perimeter Fence Security with vibration detector & alarm

Product Profile

Vibration fiber optic cable perimeter alarm system is an intrusion alarm system to detect vibration, such as excavation, walking, climbing and other vibration detected by the vibration detector will send an alarm signal.

Detector parameters

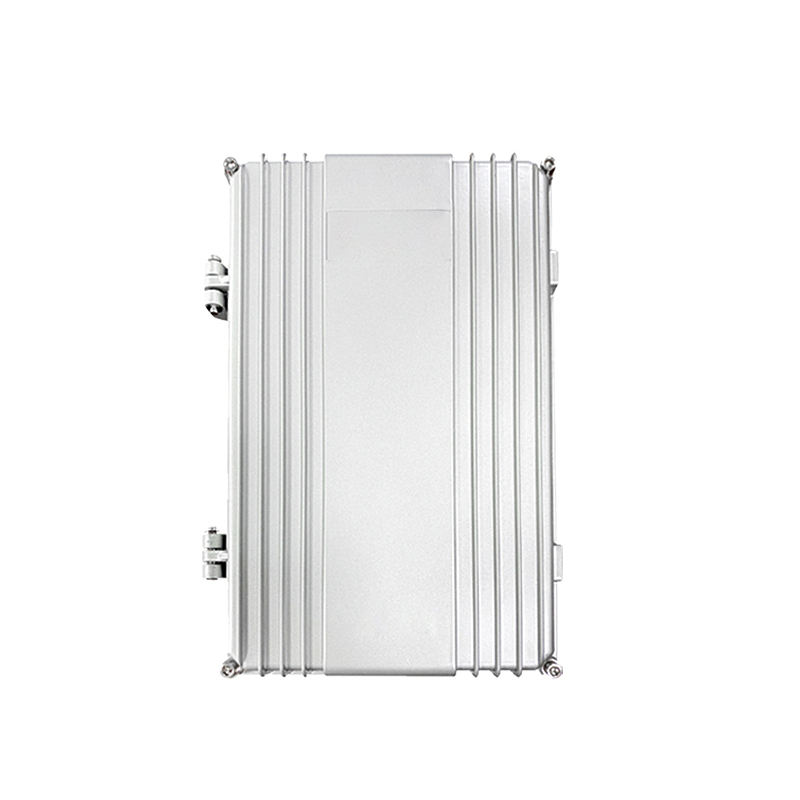

Single and double anti vibration optical fiber host
product name:single channel and double channel vibration optical fiber collector
Equipment model:Z01D(Single defense area),Z02D(Double defense zone)
Communication Method : RJ45 (Network)
Alarm mode]:Vibration, broken fiber, output switching signal
Screen size: 3.5 inches
Equipment size:304*184*78MM
Equipment power supply: DC12V
Equipment power: 10W
Relative Humidity:Less than 95%
use environment:- 40 ℃~ + 70 ℃
Shell Material: Cast aluminum housing
installation method:hanging wall or net

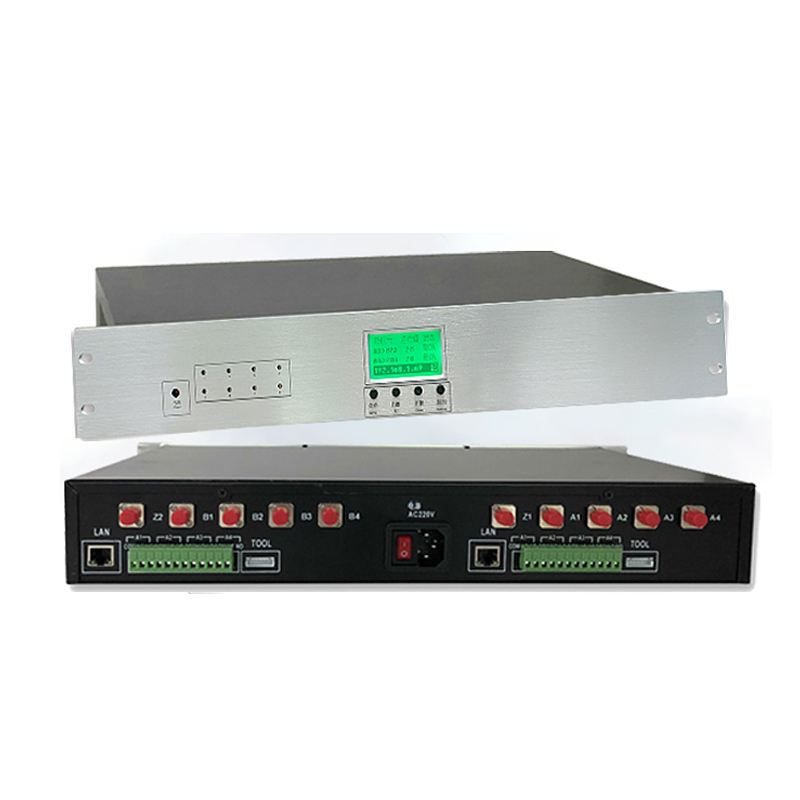

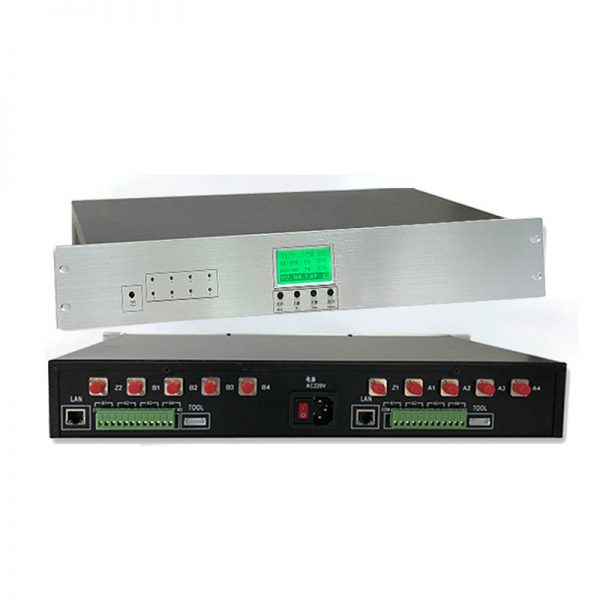

One cable multi zone vibration optical fiber host
Product Name: 4-way 8-way vibration optical fiber collector
Equipment model:Z04D(fourth defense zone), Z08D(eighth defense zone)
Equipment power supply :AC110V-220V
alarm mode: vibration, fiber breaking, output switch signal
screen size: 3.5 inches
equipment size: 485 * 250 * 68mm
communication mode: RJ45 (Network)
use environment: – 40 ℃~ + 70 ℃
relative humidity: less than 95%
Equipment power: 15W
shell material: 2U structure, wire drawing aluminum panel
installation method: placed indoors, rack mounted

Application scope of vibration optical fiber

The vibration optical cable perimeter alarm system can be used in flammable, explosive and strong magnetic interference places, such as liquefied gas plants, dangerous goods warehouses, chemical plants, military goods warehouses, etc; It can also be applied to the prevention of key facilities and areas, such as anti-theft of electronic facilities, anti-theft of oil and natural gas pipelines, anti-theft of urban railway signal lines, prevention of Olympic Village perimeter, prevention of airport perimeter, prevention of border line intrusion, etc. at the same time, it can also replace the traditional prevention means and apply to ordinary perimeter places, such as waterworks, residential quarters, villas and other perimeter places!

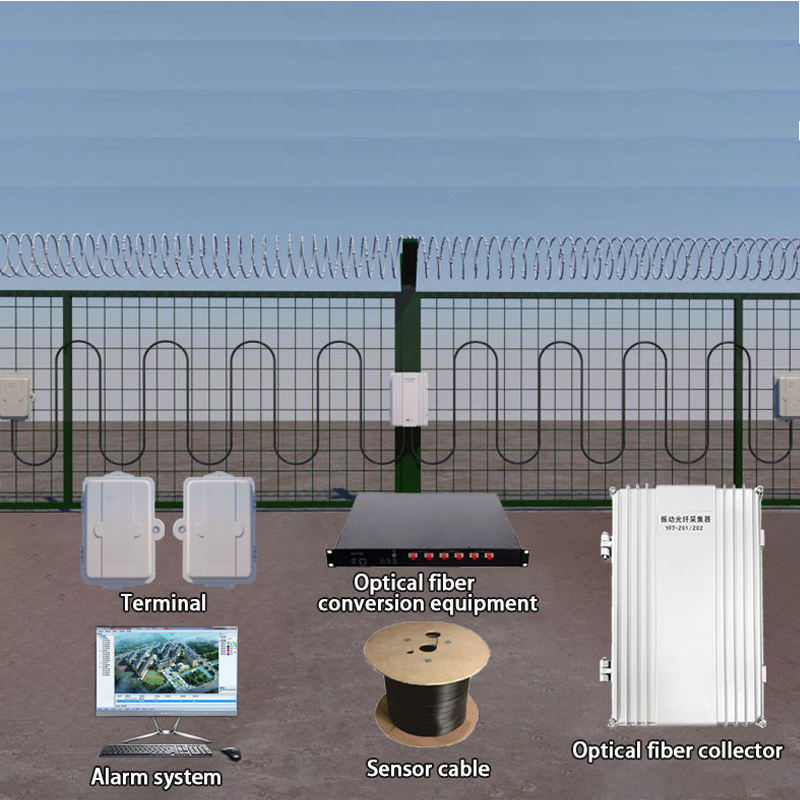

Vibration fiber optic system composition

System structure

According to the system, it can be divided into sensor communication defense area type, separation type and one cable type

Long detection distance

Multiple defense areas synchronous alarm control

Management Diagram of single and double vibration proof optical fiber remote cloud system

Schematic diagram of remote management system of multi defense area and one cable vibration optical fiber

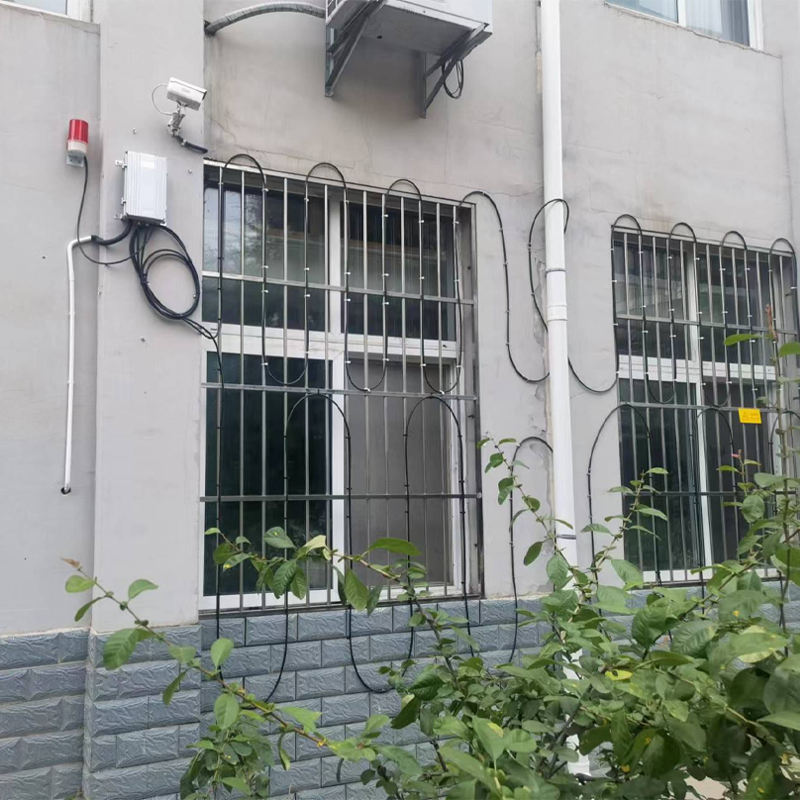

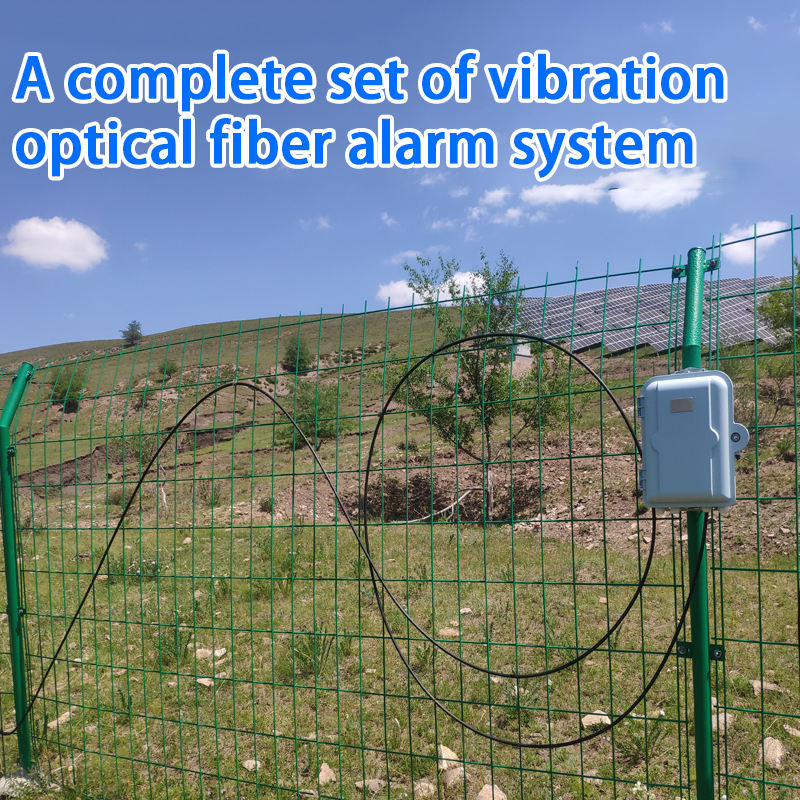

Equipment installation

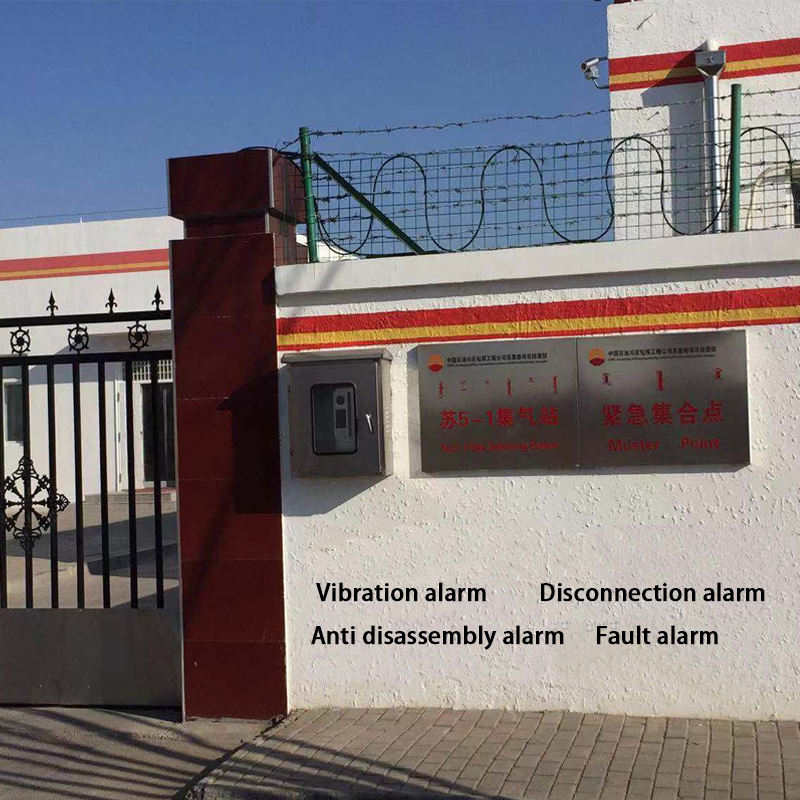

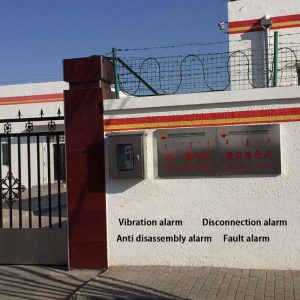

Vibration alarm ,Intelligent resolution function
The optical fiber vibration caused indirectly or directly by the intruder will send out an alarm signal. The fiber can intelligently analyze wind, rain, other vibrations and human intrusion

Broken fiber box alarm,Line self detection function
When the cable is cut off or the collector is disassembled, an alarm will be sent out. When the communication fails, it can also send out the alarm by self inspection

And the alarm information will be immediately transmitted to the perimeter monitoring platform of the security room, and the video surveillance will immediately pop up the screen of the intrusion prevention area
