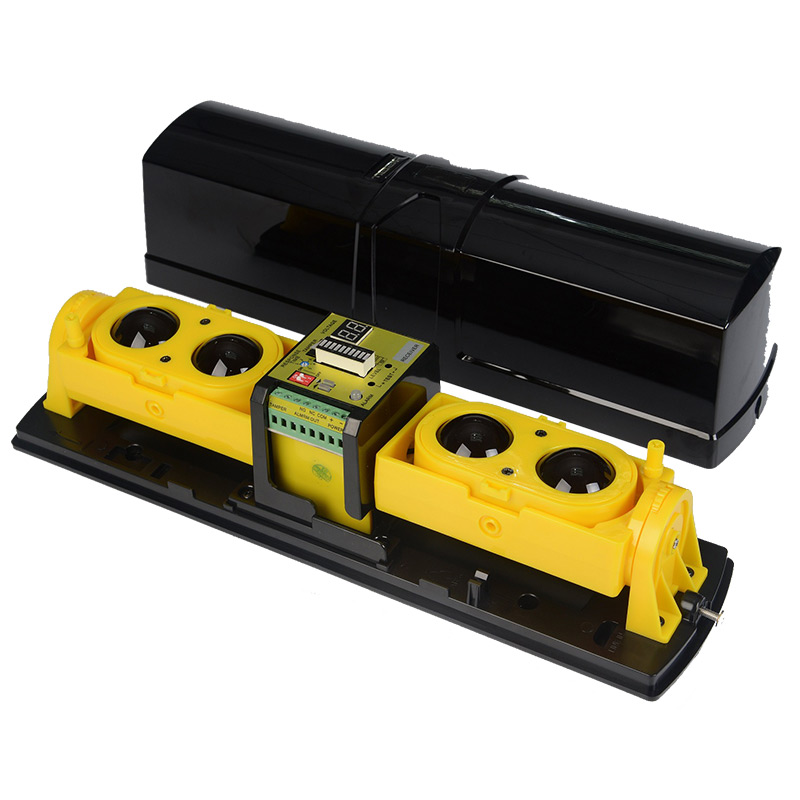

This 100m photoelectric detector uses 4 pulsed infrared beams that are designed to activate an alarm only when 4 beams are simultaneously blocked.
The robust IP55 housing of the four photoelectric detectors is designed to provide reliable perimeter security both indoors and out. The transmitters emit invisible infrared beams to the receiver with changing frequencies to protect beams from disturbance.
Outdoor detection range up to 100m
Anti-electromagnetic interference capability, suitable for substations, wireless base stations.
Adjustable induction speed and alarm trigger time 35-700msec
Optical adjustment angle (H)180° ±90° (V) 20° ±10°
Ingress protection: IP55
Dimensions: 370 x 101 x 96mm
