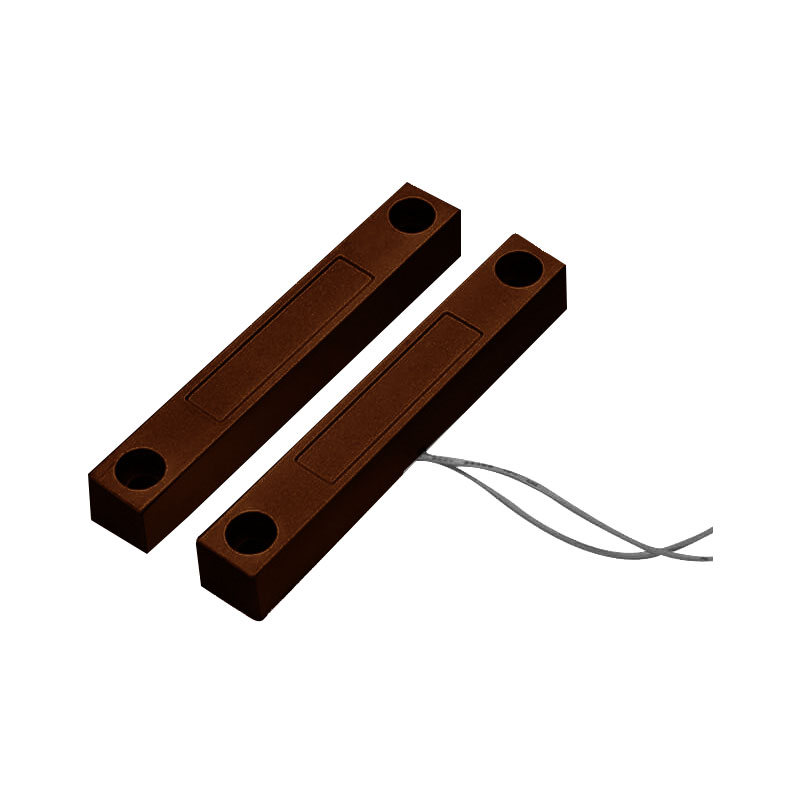

Heavy Duty Hard Wired Reed Switch – Brown

$19.00

The RSW-M1 is a heavy duty hard wired reed switch, designed for window and door applications.

Product features:
• Heavy duty magnetic contact switch
• Large magnet sensor gap, up to 50mm
• Normally closed (NC) reed switch output
• 10W maximum contact rating ( up to 100V, 0.5A)
• 250mm sensor leads (22 AWG / Ø0.64mm)
• Robust casing of zinc alloy construction
• Surface Mounted, screws included
• Dimensions 106 x 16 x 16mm

Available in silver, white or brown casing. Delivery: 1-5 days

Manufacturer Warranty: 12 Months

Add to Wishlist
Add to Wishlist

Description

The RSW-M1 is a heavy duty hard wired reed switch, designed for window and door applications.

Product features:
• Heavy duty magnetic contact switch
• Large magnet sensor gap, up to 50mm
• Normally closed (NC) reed switch output
• 10W maximum contact rating ( up to 100V, 0.5A)
• 250mm sensor leads (22 AWG / Ø0.64mm)
• Robust casing of zinc alloy construction
• Surface Mounted, screws included
• Dimensions 106 x 16 x 16mm

Available in silver, white or brown casing.





AUSTRALIAN STOCK

DELIVERY: 1-5 DAYS
