Indoor Hardwired Reed Switch

$15.00

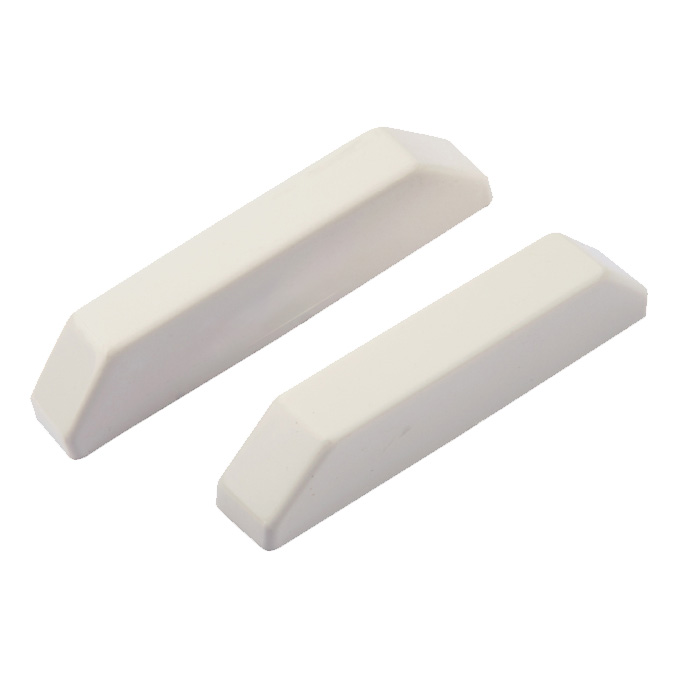

The RSW-P1 is a indoor hard wired reed switch, designed for window and door applications.

Product features:
• White indoor magnetic contact switch
• Magnet sensor gap, up to 19mm
• Normally closed (NC) reed switch output
• 3W maximum contact rating ( up to 30V, 0.2A)
• Wide range 20~AWG, Ø0.81~0.51mm
• Surface Mounted, plastic construction
• Dimensions 65.5 x 13.6 x 11.1mm Delivery: 1-5 days

Manufacturer Warranty: 12 Months

Add to Wishlist
Add to Wishlist

Description

The RSW-P1 is a indoor hard wired reed switch, designed for window and door applications.

Product features:
• White indoor magnetic contact switch
• Magnet sensor gap, up to 19mm
• Normally closed (NC) reed switch output
• 3W maximum contact rating ( up to 30V, 0.2A)
• Wide range 20~AWG, Ø0.81~0.51mm
• Surface Mounted, plastic construction
• Dimensions 65.5 x 13.6 x 11.1mm
